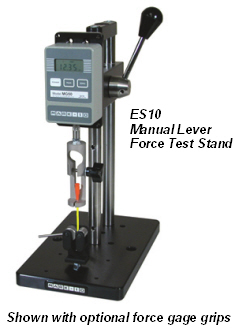

  MARK 10 ES10 / ES20 MANUAL FORCE TEST STAND
CAPACITY: 100 lbf / 50 kgf / 500 N
Buy Now
Print


FORCE TEST FTK 100

  • CAPACITIES: 100 lbf / 50 kgf / 500 N
  • TENSION & COMPRESSION
  • COMPACT TEST STAND
  • LEVER OR HANDWHEEL
  • OPTIONAL TRAVEL DISPLAYS
  • ECONOMICAL PRICE

Made in America, the ES 10 and ES 20 Manual Force Test Stands are compact and economical solutions for compression and tensile testing of small samples. Choose between ES 10 lever for quick-action or ES 20 handwheel testing for precise control. Optional dial or digital indicator kit displays up to 1'' of travel. Use these stands with force gauges and grips to create complete manual testing systems.

CONSTRUCTION

  • Rugged and exceptionally rigid steel columns.
  • Maximum vertical clearance: 9'' [229 mm] depending on gauge.
  • Maximum vertical travel: 9'' [229 mm] for ES 10 and ES 20.
  • Column to gauge load shaft clearance: 3'' [76 mm].
  • ES 10 lever travel rate: 1.05'' [26.7 mm] per lever revolution.
  • ES 20 handwheel travel rate: 0.06'' [1.5 mm] per wheel revolution.
  • Optional base plate with pattern of 25 #10-32 threaded holes.

OPERATION

  • Tension and compression measurements with quick action ES 10 lever or precise control ES 20 handwheel operation.

ACCESSORIES

  • Force mounting for M3, M4, M5, MG or FDIX force gauges.
  • Optional: A wide range of gripping fixtures, base plate with pattern of threaded holes and dial or digital travel display.

WEIGHT & DIMENSIONS

  • ES 10 & ES 20 Test Stand - 10 lb [4.5 kg].
  • ES 10 Dimensions: 13.3'' [337 mm] H x 6'' [152 mm] W x 10'' [254 mm] D.
  • ES 20 Dimensions: 17'' [431 mm] H x 6'' [152 mm] W x 10'' [254 mm] D.
MODEL DESCRIPTION PRICE
ES10 Test Stand, Lever, 100 lbf / 50 kgf Capacity $495
ES20 Test Stand, Handwheel, 100 lbf /50 kgf Capacity $595
ES001 Dial travel display, 1" x 0.001" $140
ES002 Digital Travel Display, 1" x 0.0005 $325
14-1068 Base Plate - 25 #10-32 Hole Pattern $75

MODEL FORCE GAUGES PRICE
M3 XXX Mark 10 Digital Force Gauge, 0.12, 0.25, 0.5 lbf $800*
M3 XXX Mark 10 Digital Force Gauge, 2 - 100 lbf $650*
09-1165 Cable, USB, M3 to PC, Replacement $30**
FDIX XXX Wagner Digital Force Gauge, 2 - 100 lbf $750*
FDIX/CA210 Cable, USB, FDIX to PC, Male A, Replacement $30**
FDIX/CA120 Cable, RS232, FDIX to PC, 9 pin $75**

* Refer to force gauge pages for model numbers and specifications.
** Included with M3 and FDIX; USB cable and MESURlite data collection software.

MODEL FORCE TESTING SOFTWARE PRICE
15-1004 MESURgauge Force Testing Software $495*
XXXX MESURlite Data Collection Software NC**

* Feature rich force testing software - force vs. distance analysis.
NOTE: 1) MESURgauge DEMO download available at: www.mark-10.com
2) MESURlite download available at: www.mark-10.com
