- IN-HOUSE FORCE GAGE TESTER
- TENSION/COMPRESSION VERIFICATION
- FORCE GAGES THRU 100 LB / 50 KG
- NIST TEST WEIGHTS THRU 100 LB
- FORCE GAGE ADAPTERS

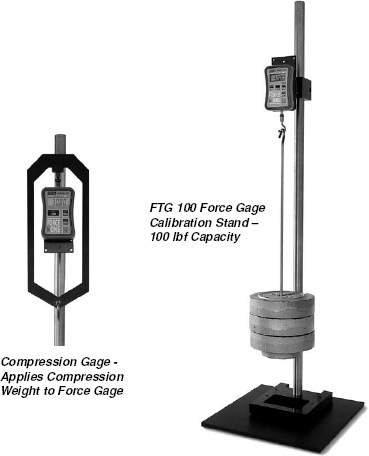

The Wagner Force Test™ Model FTG 100
Calibration Stand provides a means for verifying
the accuracy of force gages with test weights applied
to the load shaft in both tension and compression.
The FTG 100 Calibration Stand provides economical
testing of force gages for companies with
several force gages. Testing is accomplished on
a schedule, the gage to be tested is taken out of
service for only a few hours not for days or weeks.
This convenience and cost savings is strong incentive
to test your force gages with the FTG 100.
All the necessary components are provided
with the FTG 100 for verifying and NIST certifying
a wide variety of force gages to 100 lbf:
- Test Stand, 100 lbf capacity, 37" overall height
- Weight Hanger, 1 lb weight, 100 lbf capacity
- Test Weights, NIST certified or non-certified
- Compression Cage, For Compression Testing
- Stability Plate, Prevents Test Stand Overturn
CONSTRUCTION
- Steel 36" column. Other lengths available.
- Steel compression cage, 4" x 8" opening.
- Large 12" x 12" aluminum stability plate.
ACCESSORIES
- Large stainless steel hook, #10-32 thread,
for tension testing.
- Special steel fitting, #10-32 thread, for
compression cage testing.
WEIGHT & DIMENSIONS
- Weight: 18 lb (no weights).
- Dimensions: 37" H x 12" W x 12" D.
|
| MODEL |
DESCRIPTION |
PRICE |
| FTG 100 |
Universal 100 lbf Calibration Stand |
$796 |
| Includes: Gage Plate, Compression Cage & Fitting, Stability Plate and Tension Hook. |
| MODEL |
DESCRIPTION |
PRICE |
| FT/FDI |
Wagner Force One FDI |
$35 |
| FT/FDL |
Wagner FDL & Chatillon |
$35 |
| FT/FDV |
Wagner Force Five FDV |
$35 |
| FT/FDK |
Wagner Force Dial FDK/FDN |
$35 |
| FT/MK |
Mark 10 BG/EG/MG |
$35 |
| Note: One Force Gage Adapter Plate of choice is included others are optional. |
| MODEL |
DESCRIPTION |
PRICE |
PRICE/NIST |
| FT/1H9 |
1 lb Weight Hanger, 9" (229 mm) Lg. |
$71 |
|
| FT/1H22 |
1 lb Weight Hanger, 22" (559 mm) Lg. |
$71 |
|
| FT/1kg* |
1 kg Metric Slotted Weight Set* |
$92** |
* |
| FT/1/2lb |
1/2 lb Slotted Weight, 7/16" (11 mm) Ht. |
$31 |
|
| FT/1lb |
1 lb Slotted Weight, 7/16" (11 mm) Ht. |
$37 |
|
| FT/2lb |
2 lb Slotted Weight, 3/4" (19 mm) Ht. |
$41 |
|
| FT/5lb |
5 lb Slotted Weight, 1 1/4" (32 mm) H |
$52 |
|
| FT/10lb |
10 lb Slotted Weight, 1 9/16" (40 mm) Ht. |
$62 |
|
| |
| *FT/1kg |
For verifying force gages thru 2lb/1kg for a 5 data point test. Includes: 50g Aluminum Hanger, 2 - 50g, 3 - 100g and 3 - 200g Slotted Brass Weights. |
| Notes: |
(1) A 5 data point verification test is appropriate for force gages.
(2) Consult with Wagner Instruments for selection of test weights. |
|
