  MARK - 10 MG MANUAL FORCE TEST STAND
CAPACITY: 100 lbf / 50 kgf
Print
MARK 10 MG
  • TENSION & COMPRESSION
  • CAPACITY: 500 lbf / 250 kgf / 2500 N
  • BASIC FORCE TESTER
  • SELECTABLE: lbf / kgf / N
  • PEAK FORCE HOLD
  • ACCURACY +/- 0.5%

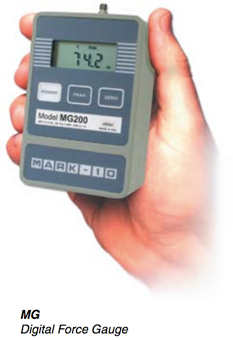

The MG Digital Force Gauge provides basic force measuring at an economical price where space is limited and added features unnecessary with a wide range of capacities from 0.12 lbf to 500 lbf.

Basic features include load shaft reversal for hand-held or test stand use, selectable pound, kilogram or Newton units, push-button zero, peak memory hold and auto-off for battery power conservation.

The AC power adapter provides continuous use with a non-rechargeable battery for back-up or for portable use.

CONSTRUCTION

  • Compact lightweight aluminum housing.
  • Split housing for upright display with shaft up or down.
  • 41/2 digit 0.3" LCD display and 3 button keypad.
  • American standard load shaft and mounting threads.

OPERATION

  • Peak force sampling rate: 30/second.
  • Tension and compression peaks held in memory.
  • Selectable units: lbf, kgf or N.
  • Simple push-button calibration procedure.

POWER REQUIREMENTS

  • Continuous operation with 110 or 220 Vac adapter.
  • Non-rechargeable battery for 30 hours operation.
  • "Lo Bat" display warns of low battery.
  • Auto-off conserves battery power.

ACCESSORIES

  • Included: non-rechargeable alkaline battery, AC adapter, hook and flat, case, manual and NIST Calibration Certificate.

ACCURACY

  • Accurate to ± 0.5% of full scale ± least significant digit.

WEIGHT & DIMENSIONS

  • 1 lb. [.5 kg] Shipping: 2.5 lb. [1.1 kg]
  • 3.7" [94 mm] H x 2.5" [64 mm ] W x 1.5" [38 mm] D


MODEL CAPACITY/GRADUATION PRICE
MG 012
0.12 lbf x
0.0001 lbf
50 gf x
0.05 gf
0.5 N x
0.0005 N
$675
MG 025
0.25 lbf x
0.0002 lbf
100 gf x
0.1 gf
1 N x
0.001 N
$675
MG 05
0.5 lbf x
0.0005 lbf
250 gf x
0.2 gf
2.5 N x
0.002 N
$675
MG 2
2 lbf x
0.002 lbf
1 kgf x
0.001 kgf
10 N x
0.01 N
$545
MG 5
5 lbf x
0.005 lbf
5 kgf x
0.001 kgf
25 N x
0.05 N
$545
MG 10
10 lbf x
0.01 lbf
5 kgf x
0.005 kgf
50 N x
0.05 N
$545
MG 20
20 lbf x
0.02 lbf
10 kgf x
0.01 kgf
100 N x
0.1 N
$545
MG 50
50 lbf x
0.05 lbf
250 kgf x
0.02 kgf
250 N x
0.2 N
$545
MG 100
100 lbf x
0.1 lbf
50 kgf x
0.05 kgf
500 N x
0.5 N
$545
MG 200
200 lbf x
0.2 lbf
100 kgf x
0.1 kgf
1000 N x
1 N
$675
MG 500
500 lbf x
0.5 lbf
250 kgf x
0.2 kgf
2500 N x
2 N
$675
MODEL ACCESSORIES PRICE
FD/S-1 Steel Hook - Large 100 lbf / 50 kgf / 500 N $20*
FD/B-1 Steel Hook - XL 200 lbf / 100 kgf / 1000 N $30*
FD/C-1 Steel Hook - XXL 500 lbf / 250 kgf / 2500 N
$45*
FD/S-2 Flat Head - 5/8" diameter $20*
FD/S-7 Hinged Hook - Large
$45
FD/S-8 Hinged Cradle - Large $45
AC1003 Handles for MG $85
*Included with the appropriate MG capacity
